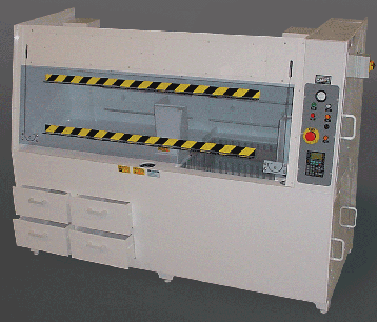

| Parts
Cleaner with Rinse Bath and Storage Drawers |
|

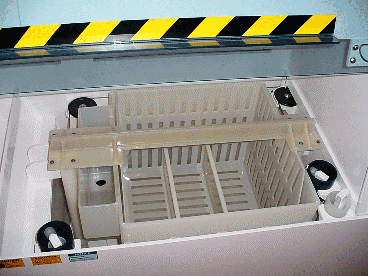

Bath
and basket are constructed of natural polypropylene |
 |
|
 |
| This
Parts Cleaner uses horizontal and vertical basket motion to agitate
parts in the filtered rinse or cleaning bath. There is a convenient
work surface on the left. |
|
Several
basket configurations and construction materials are available, depending
upon the application. |
| Parts
Cleaner with Etch and Rinse Baths |
|
Transfer
Basket Travels Horizontally Between Baths |
 |
|
 |
| This
large parts cleaner utilizes one basket on a two-axis trolley to move
parts between an etch bath and a rinse bath. Cabinet is constructed
of stress-relieved white polypropylene, with rear and bath perimeter
exhaust, and a lighted work area. Typically, the parts dipping basket
moves vertically and horizontally using pneumatic operation.
The two baths are natural polypropylene, about 36” x 36” x 17” deep.
The rinse tank may have nitrogen agitation, and both tanks have DI
water inlet valves. |
|
Operator
interface panels display process status and allow user control.
In the manual mode, the operator may manually control the basket’s
motion left and right, up and down. In the automatic mode,
the operator selects the desired recipe by specifying etch and rinse
times, and the pre-programmed processing sequence will begin. |
|
| MANY
COMPONENTS, SAFETY FEATURES AND OPTIONS ARE AVAILABLE, INCLUDING: |
| SEMI
S2 testing and certification |
|
Ultrasonic,
heated or recirculating baths |
| LCD
control interface |
|
Quick
dump rinsers |
| Computer-based
data acquisition |
|
Liquid
level sensors |
| PLC
controlled operator interface panels |
|
Chemical
bulk fill capability |
| Bench
alarms with shutdown capability |
|
Lockouts
for incoming utilities |
| Alarm/minihelic
reset panel |
|
Emergency
Off Switch (EMO), front and rear |
| Maintenance
panel interlocks with tool secured fasteners |
|
Compressed
dry air regulators for pump control |
| Main
power disconnect switch |
|
Clear
PVC or polycarbonate sash to help limit operator exposure and increase
fume control (optional pneumatic operation) |
|
| FM4910-Approved
CPVC materials are available for bench construction |
| Go
to PDF format Catalog Sheet:
Large
Parts Cleaner Catalog Sheet |
