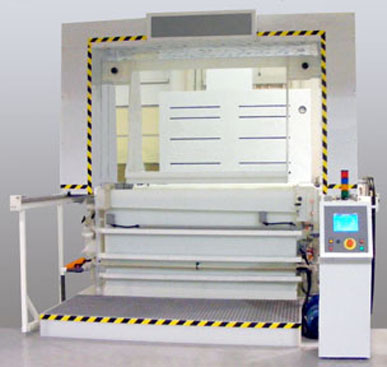

| The
CFI System is an automated Acid Dip System constructed of natural
and white Polypropylene.
It includes a load/unload area, Acid Dip Tank and
2-stage Counterflow Rinse Dip Tank. It is designed
to transfer parts via a motor driven, automated hoist. Updraft exhaust
maintains a fume controlled work area.
Tanks
are constructed of 1” natural polypropylene and are recirculated,
heated, filtered and temperature controlled with liquid level sensor.
Double containment is provided for all tanks.
Control
Station includes a PLC-driven, Touchscreen, Operator Interface Terminal.
Hoist positions, processes and recipes are fully programmable. Control
enclosures have tool secured, access panels for ease of maintenance.
System
includes a DC gear lift motor with coated, stainless steel cable.
Basket lift, lift speed, distance and |
