Laminar Flow Work Stations

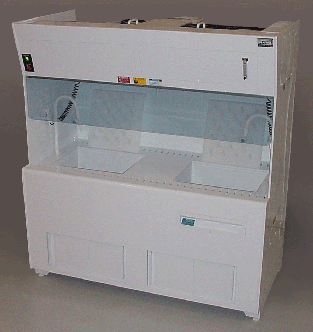

Double Sink Parts Washer, with HEPA Filtered Laminar Flow Unit	Single Cleaning Sinks w/HEPA Filtered Laminar Flow Units

Laminar Flow Benches Feature:

	Polypropylene construction
	Laminar flow HEPA fan/filter module
	Lighted work area

	Adjustable rear exhaust slots, and tank perimeter exhaust
	Modular workdeck to allow for tanks or other modifications

FM4910-Approved CPVC materials are available for bench construction

Portable Laminar Flow Workstation, Model 9046	Laminar Flow C-Frame Stand, Model 9726		Portable Laminar Flow Enclosure, Model 8746

Other sizes and configurations may be built to order

Laminar Flow Enclosures Feature:

Model 9046:

Stainless steel work surface

Internal work area is 48" wide x 30" deep x 32" high

Polypropylene upper unit construction

Stainless steel frame and large locking casters

One laminar flow HEPA fan/filter module, 24"x36"

Static-dissipative PVC walls with swinging sash, or option solid polypropylene walls

ULPA fan/filter models are also available

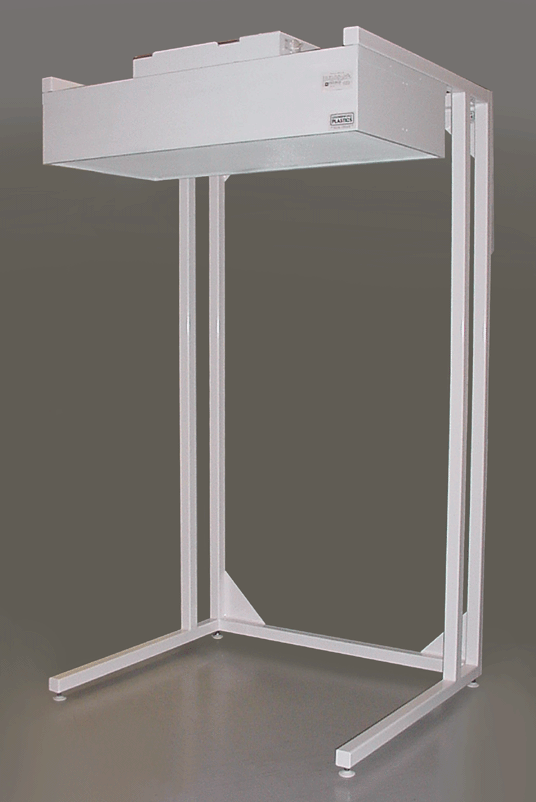

Model 9726:

Powder coated steel frame with leveling legs

One laminar flow HEPA fan/filter module, 24"x36" or 24"x48"

Open C-frame construction

ULPA fan/filter models are also available

Model 8746:

Designed for use in Class 100 (or cleaner) clean rooms

Internal work area is 96" wide x 36" deep x 74" high

Polypropylene upper unit construction

Powder coated steel frame and large casters

Two laminar flow HEPA fan/ filter modules, each 24" x 36"

Static-dissipative vinyl soft walls, or optional solid polypropylene walls

ULPA fan/filter models are also available
